ISOFLOW 90mm Single - Heating

ISOFLOW 90mm Single - Heating

https://www.flowsupplies.co.uk/web/image/product.template/2059/image_1920?unique=46e6b99

£ 577.87 577.87 GBP £ 577.87 Tax Excluded

Not Available For Sale

  • Insulated Duct Option
  • Length
  • Add Fittings Kit
  • Add Waterproof Heatshrink End Cap for Duct

This combination does not exist.

Contact Us

Terms and Conditions

Share

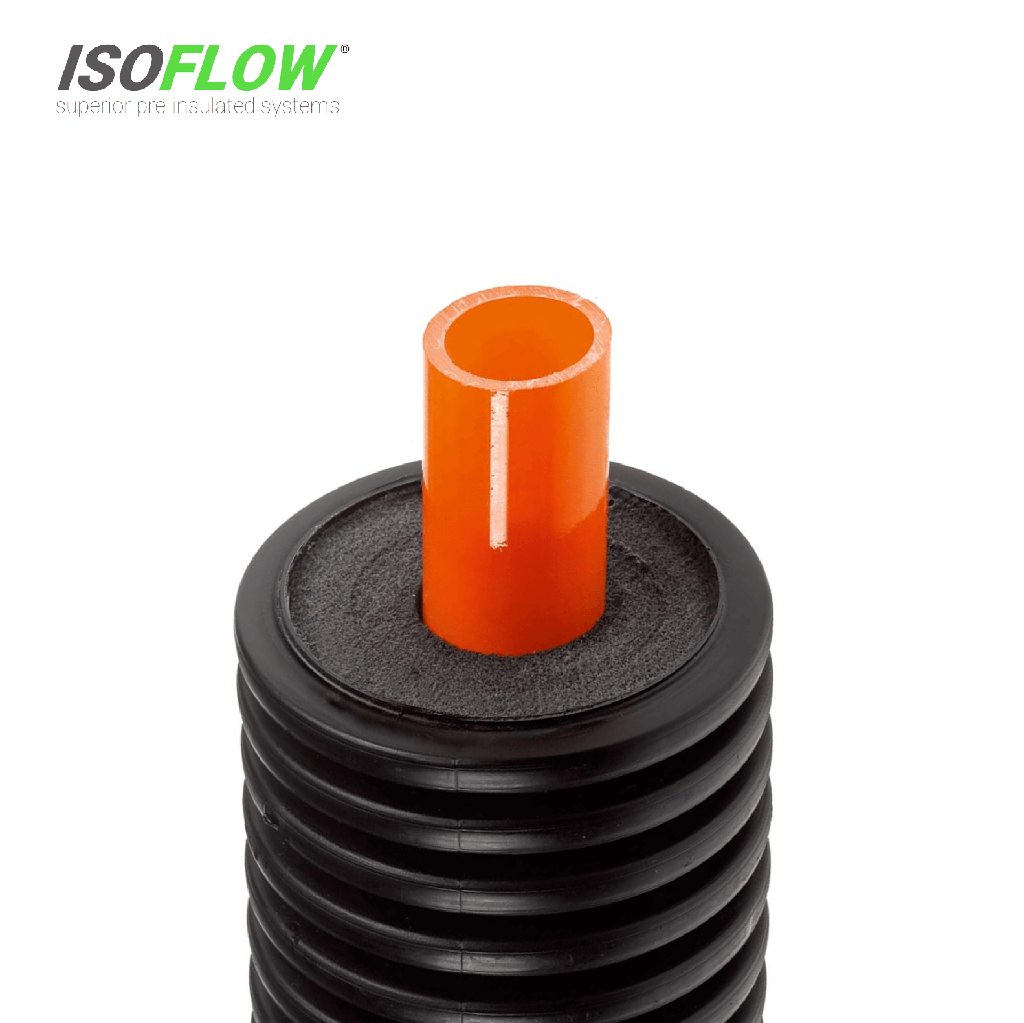

ISOFLOW 90mm Single Pipe for Heating - internal bore 73.6mm

  1. 160mm, 200mm and super insulated 225mm duct options available.
  2. Select the length you require - 5m to 100m
  3. Fittings are the brass clamp type (no special tooling required) and convert the durable pex-a pipe to 3" male BSP.
  4. Heat shrink end caps cover the exposed insulation at the ends and prevent water ingress - recommended on all runs but imperative if ends are external or underground.

Key Product Features (full specification and installation instructions can be found on the 'tech specs' page):

  • Designed in accordance with BS15632-1&3
  • Carrier pipe: PE-Xa/SDR 11/PN6:  Internal bore 73.6mm.
  • EVOH Oxygen barrier in accordance with ISO17455
  • Continuous operating temp 80°C, Max 95 °C for limited period.
  • PE-X insulation foam: < 1% water absorption in accordance with ISO 2896
  • UV resistant corrugated outer duct
  • CFC-free production process

Shipping costs are dictated by pallet space required and will be calculated at checkout.  Please note cut to length product is not returnable for credit.  Visually the product may vary (pipe colour etc) but technical performance remains consistent.

Please call 0333 577 0210 if you require any advice or assistance.
